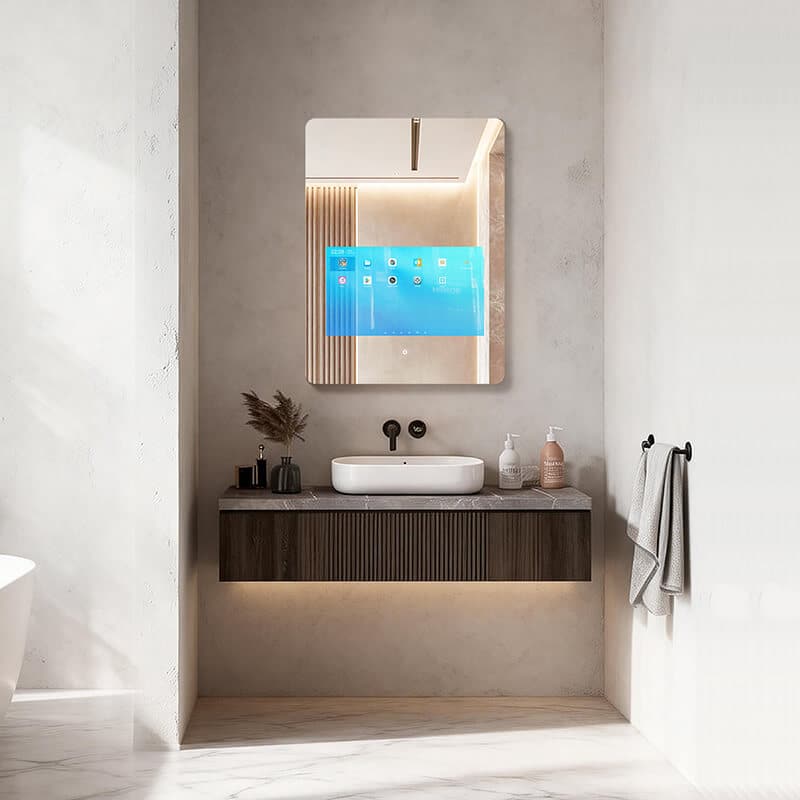

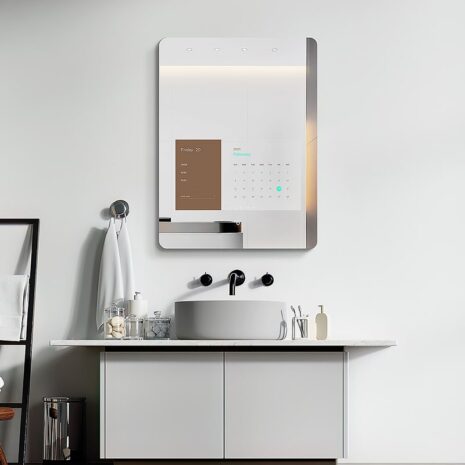

M2S Smart Bathroom Mirror with 21.5″ Touch Screen
The M2S Smart Bathroom Mirror is designed for hotels, commercial washrooms, serviced apartments, and premium residential projects. It integrates touch display functionality, IP-rated protection for bathroom environments, and a premium mirror finish for modern customer-facing spaces.
Combining everyday mirror use with smart interactive features, the M2S is well suited for commercial and residential project rollouts.
Slim Smart Mirror Design
The M2S Smart Mirror features a slim metal body with a clean matte black frame, making it suitable for modern bathrooms, hotel rooms, serviced apartments, and residential projects. Its compact structure allows easy integration into different interior designs.
Integrated Touch Display
The built-in touch display provides a clear and responsive user experience for information viewing, media playback, smart home control, and customized digital interfaces.
Balanced Mirror and Display Performance
The M2S uses optimized mirror coating to balance everyday mirror reflection with display visibility. When the screen is on, content appears clearly through the mirror; when the screen is off, it maintains a clean mirror appearance.
Touch and Voice Interaction
The mirror supports smooth touch operation and optional voice control, making daily interaction more convenient for users in bathroom and living spaces.
Smart Home Integration
The M2S can be connected with compatible smart home devices and customized control systems, depending on project software requirements. It is suitable for smart bathrooms, connected living spaces, and commercial display applications.
Android-Based Platform
Built on an Android system platform, the M2S supports flexible software integration, app customization, and project-based smart mirror applications.
Display
| Display Size | 21.5" |
|---|---|
| Mirror Size (W*H) | 600*800 mm |
| Display Type | IPS |
| Resolution | 1920*1080 |
| Original Screen Brightness | 500 cd/m² |
| Contrast Ratio | 3000:1 |
| Viewing Angle | 178°(H)*178°(V) |
| Response Time | 18ms |
Core Hardware
| CPU | 1.8GHz A55*4 |
|---|---|
| GPU | Mali-G52 |
| RAM | 2GB |
| ROM | 8/16GB |
Built-in Modules
| Touch Screen | Yes (10 points) |
|---|---|
| Speaker | 2*3W |
| Microphone | Array dual mic |
| Camera | Optional |
| Motion Sensor | Yes (20-80cm) |
Software & OS
| Operating System | Android 11 |
|---|
Interfaces & Connectivity
| Wi-Fi | 2.4/5G HIEE 802.11a/b/g/n/ac |
|---|---|
| Bluetooth | 5.0 |
| LAN | 1 |
| USB | Type A x 1 |
| USB (OTG) | Type Ax 1 |
Interactive Features & Functions
| Auto Rotation | No |
|---|---|
| Touch Function | Yes |
| Audio Recording | Yes |
| Photo & Video Capture | No |
| Video Call Support | No |
| Voice Assistant | Yes |
Lighting, Mirror & Appearance
| Mirror Panel | Coated silver mirror |
|---|---|
| LED Lighting | Yes |
| Anti-fog Film | Optional |
| Material / Process | Metal housing and Aluminum frame |
Mechanical, Installation & Protection
| Overall Dimensions (W*H*D mm) | 800mm(H)x600mm(W) |
|---|---|
| Gross Weight | 15.5kg |
| Net Weight | 11Kg |
| Package Dimensions (W*H*D mm) | 960*750*170mm |
| Waterproof Rating | IPX4 |
Environment & Power
| Power Supply | AC 100-240V 0.8AMax 50/60Hz |
|---|---|
| Power Input | AC 100-240V |
| Consumption | ≤36W |
| Standby | ≤1W |
