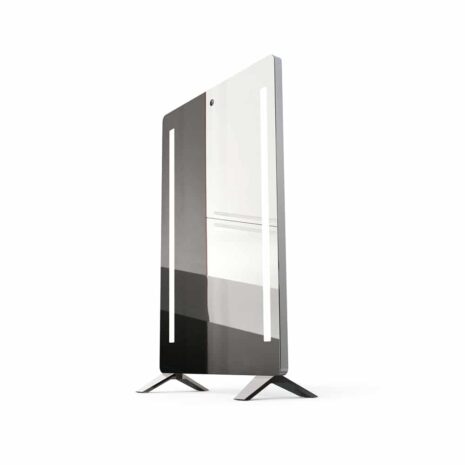

S2 Smart Vanity Mirror with ISP Camera
The S2 Smart Vanity Mirror is designed for beauty retail stores, duty-free shops, flagship showrooms, salons, and premium vanity spaces. It combines a large touch screen, integrated smart display functions, and an independent ISP camera option to support beauty consultation, skincare analysis, virtual try-on, product presentation, and customized interactive applications.
Built for performance-focused beauty and retail projects, the S2 supports Wi-Fi connectivity, flexible system configurations, and app-based customization for multi-location deployment and branded customer experiences.
Premium Beauty Mirror Design
The S2 Smart Vanity Mirror features a slim aluminum body and a clean mirror appearance designed for beauty retail stores, flagship showrooms, salons, and premium vanity spaces. Its modern design helps create a professional and engaging customer experience.
Large Touch Display
The integrated 21.5” touch display provides clear visual performance for beauty consultation, product presentation, interactive tutorials, promotional content, and customized brand applications.
Professional Camera Option
The S2 is configured with a professional camera and independent ISP solution to support high-definition imaging for beauty consultation, skin analysis, virtual makeup, and other camera-based applications.
Adjustable Beauty Lighting
Adjustable LED lighting can be configured to support different beauty scenarios, helping provide consistent illumination for makeup, skincare consultation, and product demonstrations.
AI Skin Analysis and AR Makeup Support
Depending on the software configuration, the S2 can support AI skin analysis, AR virtual makeup, personalized skincare recommendations, and interactive beauty experiences. These features can be customized according to the customer’s application and regional software requirements.
Retail Content and Customer Engagement
The S2 can display promotional content, product information, tutorials, and interactive brand campaigns. For retail projects, it can help enhance in-store engagement and support more personalized customer interaction.
Android-Based Platform
Built on an Android system platform, the S2 supports app installation, software customization, connected display functions, and project-based beauty retail applications.
Display
| Display Size | 21.5 inch |
|---|---|
| Display Type | IPS |
| Resolution | 1920xR.G.Bx1080 |
| Original Screen Brightness | 500cd/m2 (Original LCD Screen) |
| Contrast Ratio | 3000:1 |
| Viewing Angle | 178°(H)*170°(V) |
| Response Time | 18ms |
Core Hardware
| CPU | Cortex-A72*4 + A53*4 @2.2GHz |
|---|---|
| GPU | ARM G52 MC3 |
| NPU / AI Accelerator | 6 TOPS* RKNN |
| RAM | 4 – 16GB |
| ROM | 8 – 128GB |
Built-in Modules
| Touch Screen | Yes (10 points) |
|---|---|
| Speaker | 2*3W |
| Microphone | Array dual mic |
| Camera | 13 – 48M with ISP |
| Motion Sensor | 0~80cm |
Software & OS
| Operating System | Android 14 |
|---|
Interfaces & Connectivity
| Wi-Fi | WiFi 6 (IEEE 802.11ax), 2.4G/5G |
|---|---|
| Bluetooth | 5.4 |
| LAN | Optional |
| USB | Type A x 1 |
| USB (OTG) | Type A x 1 |
Interactive Features & Functions
| Auto Rotation | No |
|---|---|
| Touch Function | No |
| Audio Recording | No |
| Photo & Video Capture | No |
| Video Call Support | No |
| Voice Assistant | Yes |
Lighting, Mirror & Appearance
| Mirror Panel | Coated silver mirror |
|---|---|
| LED Lighting | Yes |
| Anti-fog Film | No |
| Material / Process | Metal housing and Aluminum frame |
Mechanical, Installation & Protection
| Overall Dimensions (W*H*D mm) | 690mm(H)x400mm(W) |
|---|---|
| Package Dimensions (W*H*D mm) | 680*150*485mm |
| Waterproof Rating | IPX4 |
Environment & Power
| Power Supply | DC 12V 3A |
|---|---|
| Power Input | AC 100-240V |
| Consumption | ≤60W |
| Standby | ≤1W |
